Pontiac Rotating Kits

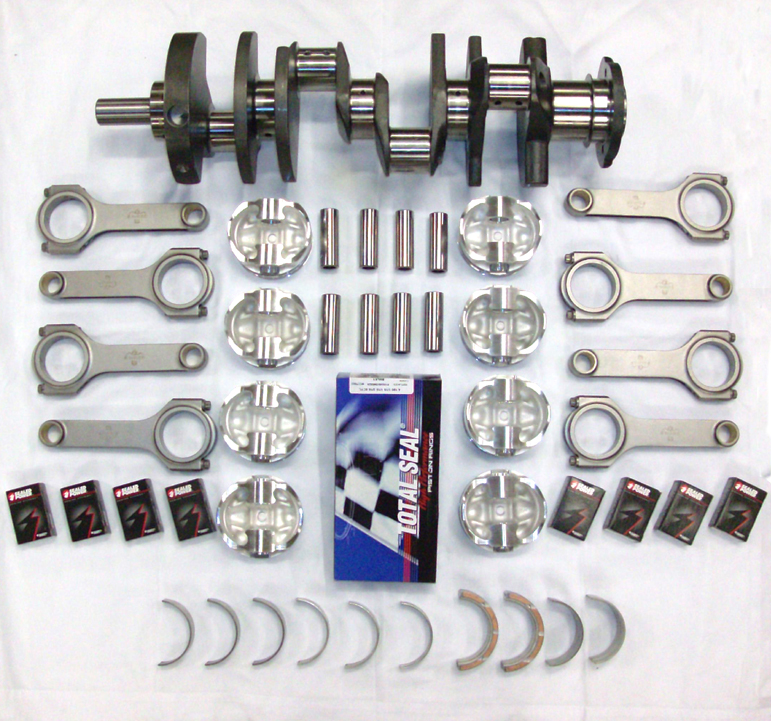

Rotating kit

Cast Crank Assemblies with flat top pistons


CID Contents Bore size & Cart
461-467 cid Eagle cast 4.25 stroke crank with 3" main journals, Keith Black Forged Pistons, Eagle 6.800 H-beam rods, Total Seal file fit rings, FM rod and main bearings. $1,623.00
  4.155
  4.165
  4.185(1)
  4.195
  4.210


CID Contents Bore size & Cart
462-469 cid Eagle cast 4.21 stroke crank with 3.25" main journals, Keith Black Forged Pistons, Eagle 6.625 H-beam rods, Total Seal file fit rings, FM rod and main bearings. $1,614.00
 4.180
  4.190
  4.210


CID Contents Bore size & Cart
434-440 cid Pro-Warrior cast 4.00 stroke crank with 3" main journals, Keith Black Forged Pistons, Eagle 6.800 H-beam rods, Total Seal file fit rings, FM rod and main bearings. $1,673.00
  4.155
  4.165
  4.185


CID Contents Bore size & Cart
463-474 cid Eagle cast 4.25 stroke crank with 3.25" main journals, Keith Black Forged Pistons, Eagle 6.800 H-beam rods, Total Seal file fit rings, FM rod and main bearings. $1,628.00
 4.155
 4.165
 4.185(1)
  4.195
  4.210




Cast & Forged Crank Assemblies with dished pistons


CID Contents Bore size & Cart
461-467 cid Eagle cast 4.25 stroke crank with 3" main journals, Keith Black Forged 10.5 cc dished Pistons, Eagle 6.800 H-beam rods, Total Seal file fit rings, FM rod and main bearings. $1,623.00
  4.155
  4.165
  4.185
  4.195
  4.210


CID Contents Bore size & Cart
462-469 cid Eagle cast 4.21 stroke crank with 3.25" main journals, Keith Black Forged 15cc dished Pistons, Eagle 6.625 H-beam rods, Total Seal file fit rings, FM rod and main bearings. $1,614.00
 4.180
  4.190
  4.210


CID Contents Bore size & Cart
434-440 cid Pro-Warrior cast 4.00 stroke crank with 3" main journals, Keith Black Forged Pistons, Eagle 6.800 H-beam rods, Total Seal file fit rings, FM rod and main bearings. $1,673.00
  4.155
  4.165
  4.185


CID Contents Bore size & Cart
463-474 cid Eagle cast 4.25 stroke crank with 3.25" main journals, Keith Black Forged 10.5cc dished Pistons, Eagle 6.800 H-beam rods, Total Seal file fit rings, FM rod and main bearings. $1,628.00
 4.155
 4.165
 4.185
  4.195


CID Contents Bore size & Cart
488-501 cid Ohio forged 4.50 stroke crank with 3.00" main journals, Keith Black Forged 17cc dished Pistons, Eagle 6.700 H-beam rods, Total Seal file fit rings, FM rod and main bearings. $2,028.00
  4.155
  4.165
  4.185
  4.195
  4.210


CID Contents Bore size & Cart
488-501 cid Ohio forged 4.50 stroke crank with 3.25" main journals, Keith Black Forged 17cc dished Pistons, Eagle 6.700 H-beam rods, Total Seal file fit rings, FM rod and main bearings. $2,028.00
  4.155
  4.165
  4.185
  4.195
  4.210

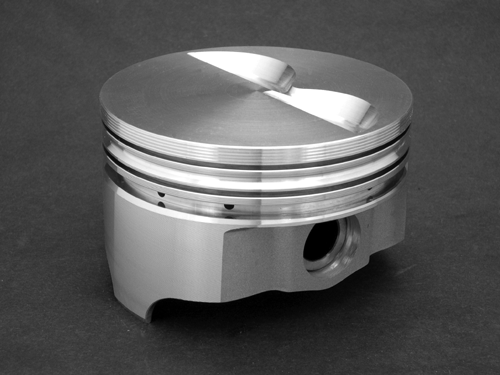

KB pistons

Forged Crank Assemblies

KB pistons


CID Contents Bore size & Cart
462-469 cid Ohio forged 4.21 stroke crank with 3.00" main journals, Keith Black Forged Pistons, Eagle 6.625 H-beam rods, Total Seal file fit rings, FM rod and main bearings. $1,984.00
 4.180
  4.190
  4.210


CID Contents Bore size & Cart
461-474 cid Ohio forged 4.25 stroke crank with 3" main journals, Keith Black Forged Pistons, Eagle 6.800 H-beam rods, Total Seal file fit rings, FM rod and main bearings. $1,998.00
  4.155
  4.165
  4.185
  4.195
  4.210


CID Contents Bore size & Cart
406-412 cid Ohio forged 3.75 stroke crank with 3" main journals, Keith Black Forged Pistons, Eagle 6.625 H-beam rods, Total Seal file fit rings, FM rod and main bearings. $1,984.00
  4.150
  4.160
  4.180


CID Contents Bore size & Cart
462-469 cid Ohio forged 4.21 stroke crank with 3.25" main journals, Keith Black Forged Pistons, Eagle 6.625 H-beam rods, Total Seal file fit rings, FM rod and main bearings. $2,014.00
 4.180
  4.190
  4.210


CID Contents Bore size & Cart
488-501 cid Ohio forged 4.50 stroke crank with 3" main journals, Keith Black Forged Pistons, Eagle 6.700 H-beam rods, Total Seal file fit rings, FM rod and main bearings. $2,003.00
  4.155
  4.165
  4.185
  4.195
  4.210


CID Contents Bore size & Cart
461-474 cid Ohio forged 4.25 stroke crank with 3.25" main journals, Keith Black Forged Pistons, Eagle 6.800 H-beam rods, Total Seal file fit rings, FM rod and main bearings. $2,028.00
  4.155
  4.165
  4.185
  4.195
  4.210


CID Contents Bore size & Cart
488-501 cid Ohio forged 4.50 stroke crank with 3.25" main journals, Keith Black Forged Pistons, Eagle 6.700 H-beam rods, Total Seal file fit rings, FM rod and main bearings. $2,028.00
  4.155
  4.165
  4.185
  4.195
  4.210




Forged Crank Assemblies only for Aftermarket Blocks

CID Contents Bore size & Cart
482-511 cid Ohio forged 4.25 stroke crank with 3.00" main journals, Ross Forged Pistons, Eagle 6.800 H-beam rods, Total Seal file fit rings, FM rod and main bearings. $2,224.00
  4.250
  4.350
  4.375


CID Contents Bore size & Cart
510-540 cid Ohio forged 4.50 stroke crank with 3" main journals, Ross Forged Pistons, 6.700 H-beam rods, Total Seal file fit rings, rod and main bearings. $2,224.00
  4.250
  4.350
  4.375


Balance your assembly   $200.00
Scat crank upgrade to forged assembly   $50.00

Piston options
Ross flat top piston upgrade assembly  $186.00
(1)
JE SRP 4.185 piston swap is an extra   $26.00
Ross dished or dome piston upgrade assembly  $236.00

Piston ring options
Total Seal gapless rings   $90.00
Total Seal top gapless ring option  $140.00
Connecting rod options
H-beam rod bolt upgrade to 2000 series bolts  $80.00
Crower rod upgrade  $417.00
GRP Aluminum Rods upgrade  $636.00
Oliver Steel Billet rods upgrade  $911.00

Ross Pistons Pro-Warrior rods Crower rods Ohio rods
Eagle rods SRP Pistons Total seal rings Scat cranks
KB pistons Oliver rods GRP rods FM Bearings
